SPECIFICATIONS

Brand Name: Bymaocar

Compression Ratio: 8.4:1

Condition: New

Cylinders: 1

Displacement: 225CC

Engine: 4 Stroke

Engine Position: Outboard

Engine Type: 4-stroke, OHV

High-concerned chemical: None

Idle Speed: 1800+150rpm

Material: Aluminum Alloy, Nylon, Rubber

Max. Speed: 15km/h/9.32miles/h

Max.Output: 4.3kw

Net Torque: 12.5n.m / 7.7 Lbf.ft, 2500rpm

Origin: Mainland China

Process: Spray Molding

Rotation: 3800r/min

Welcome to Luckybuy888 Store!

1. If you have any questions, please feel free to contact us.

2. Our products are shipped from the USA. Generally, parcels can arrive within 5 to 10 days.

3. Note: After sending your message, there's no need to worry. Due to the time difference, we'll respond to your message within 24 hours. In case of product quality issues or damage, we provide multiple after-sales solutions including replacement of accessories, partial refund, or return and full refund. We will handle all after-sales matters carefully and properly to safeguard your legitimate shopping rights.

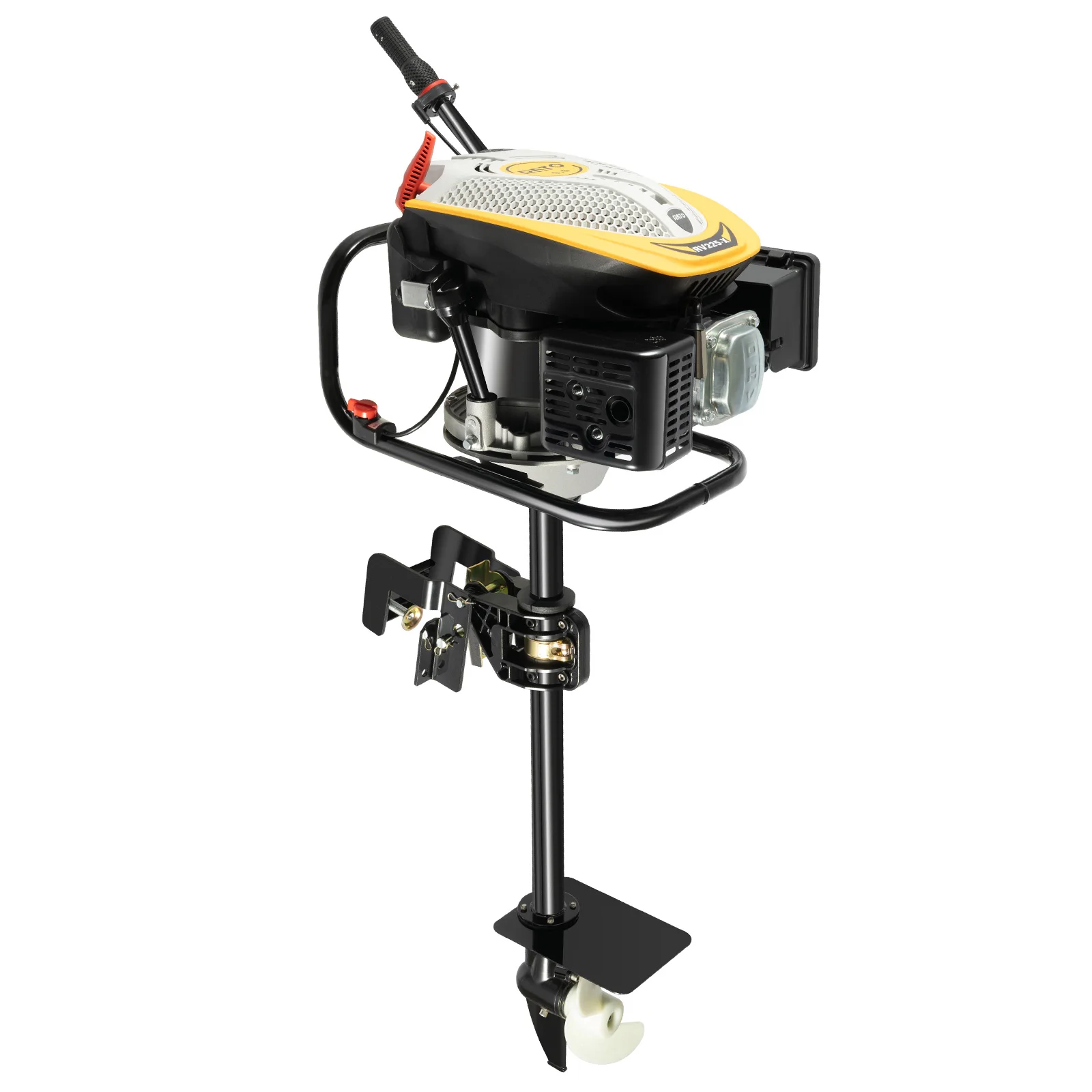

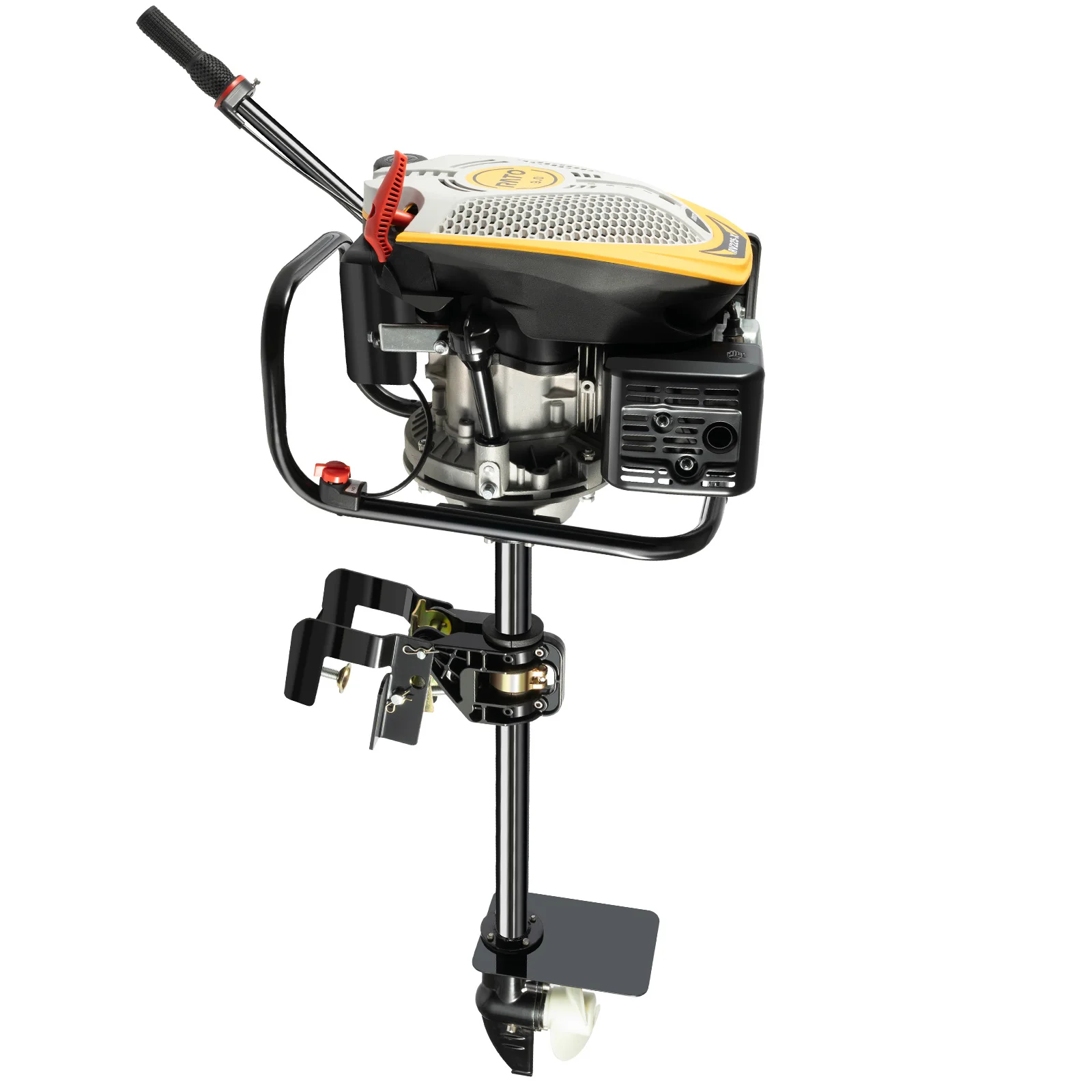

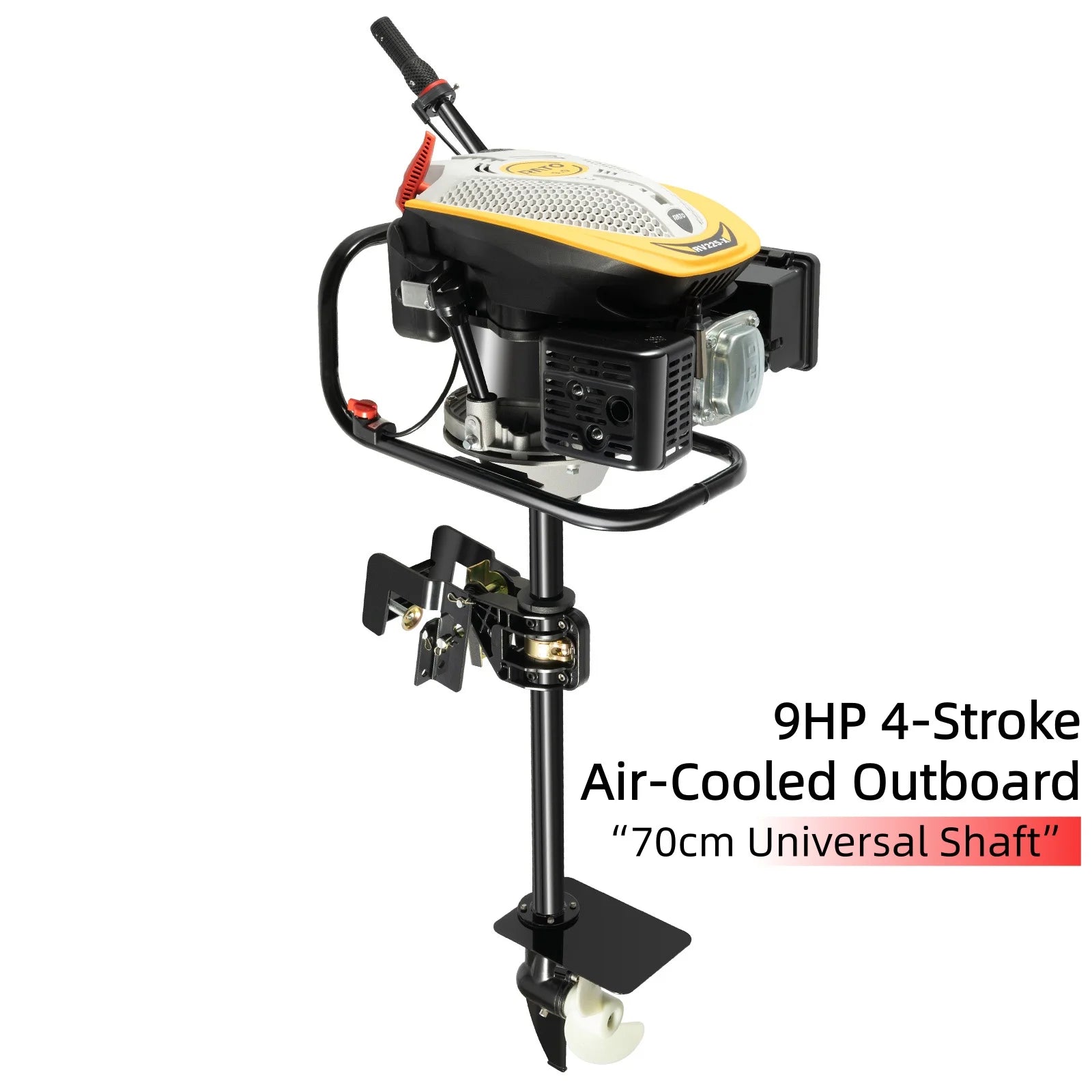

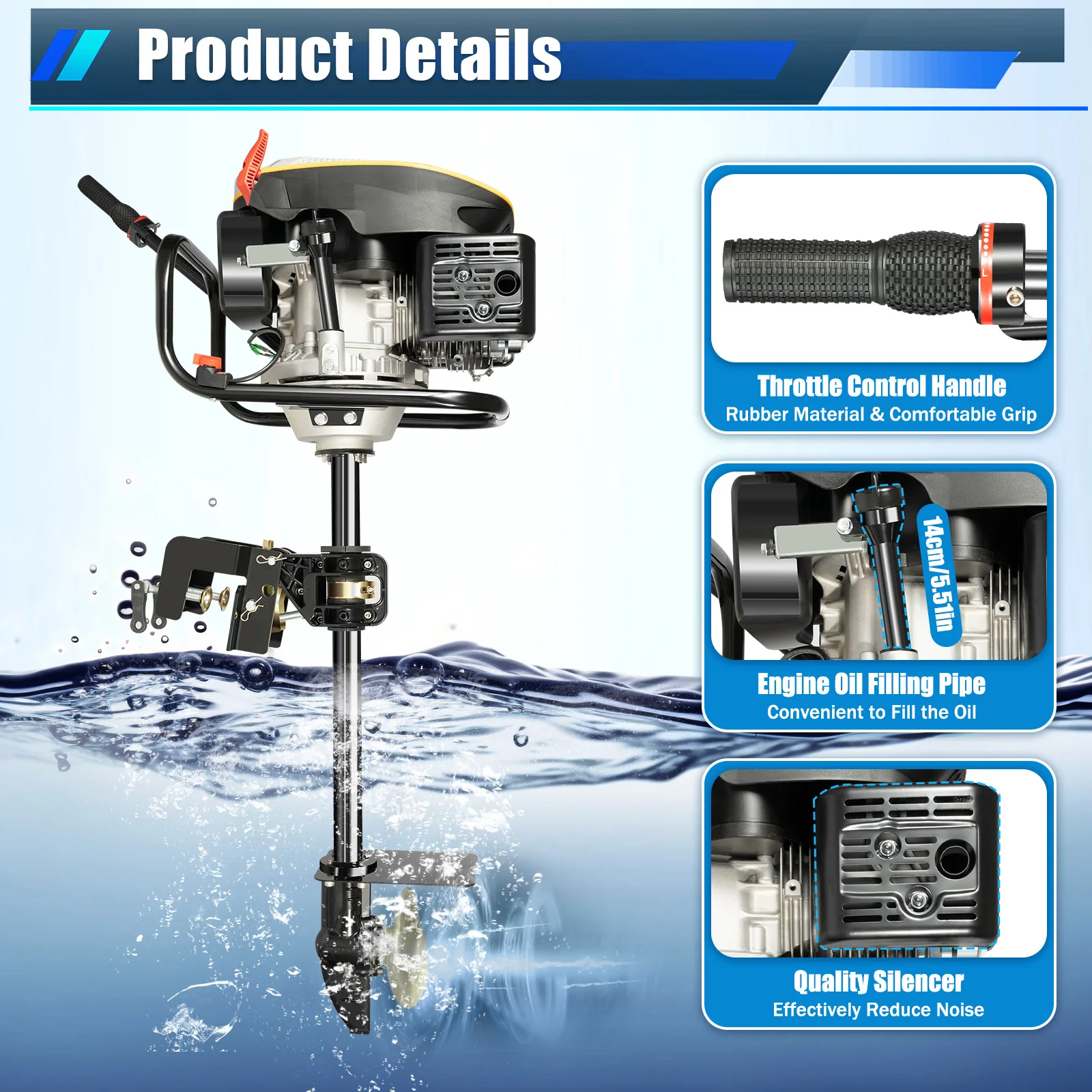

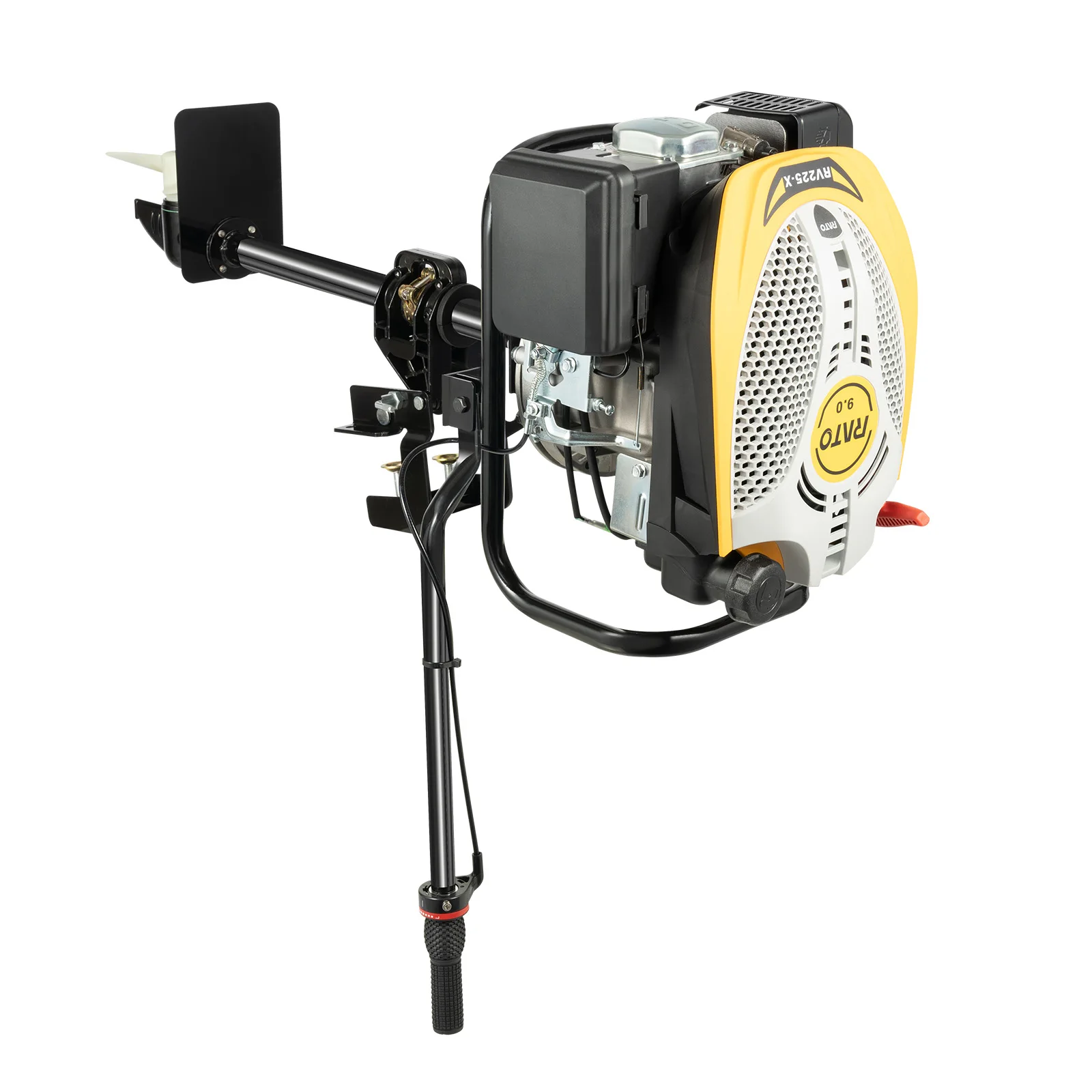

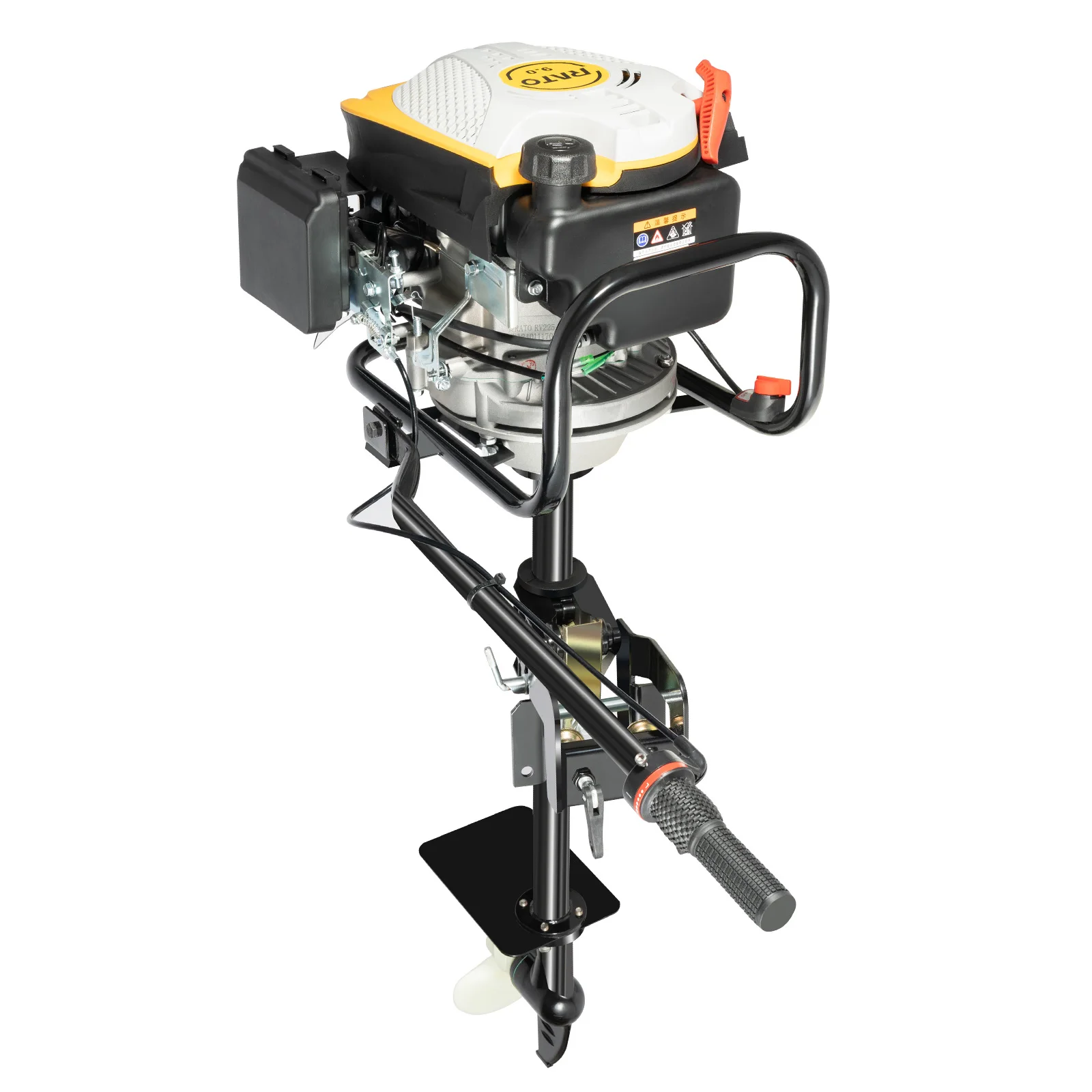

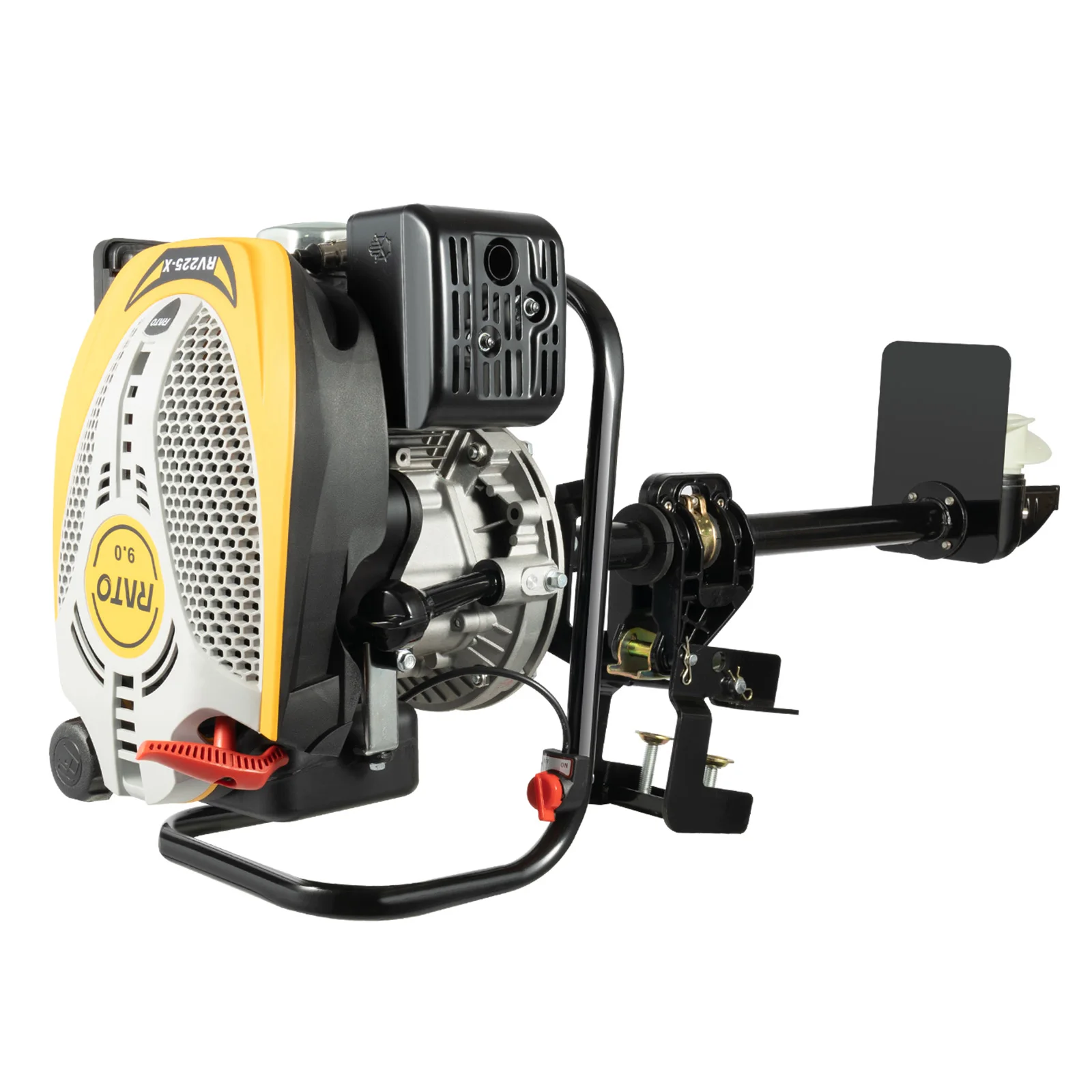

High-Quality 4-Stroke Boat Motor - 9HP Air-Cooled Hand-Start Marine Outboard with 70cm Universal Shaft/360° Steering/Stepless Speed

Application

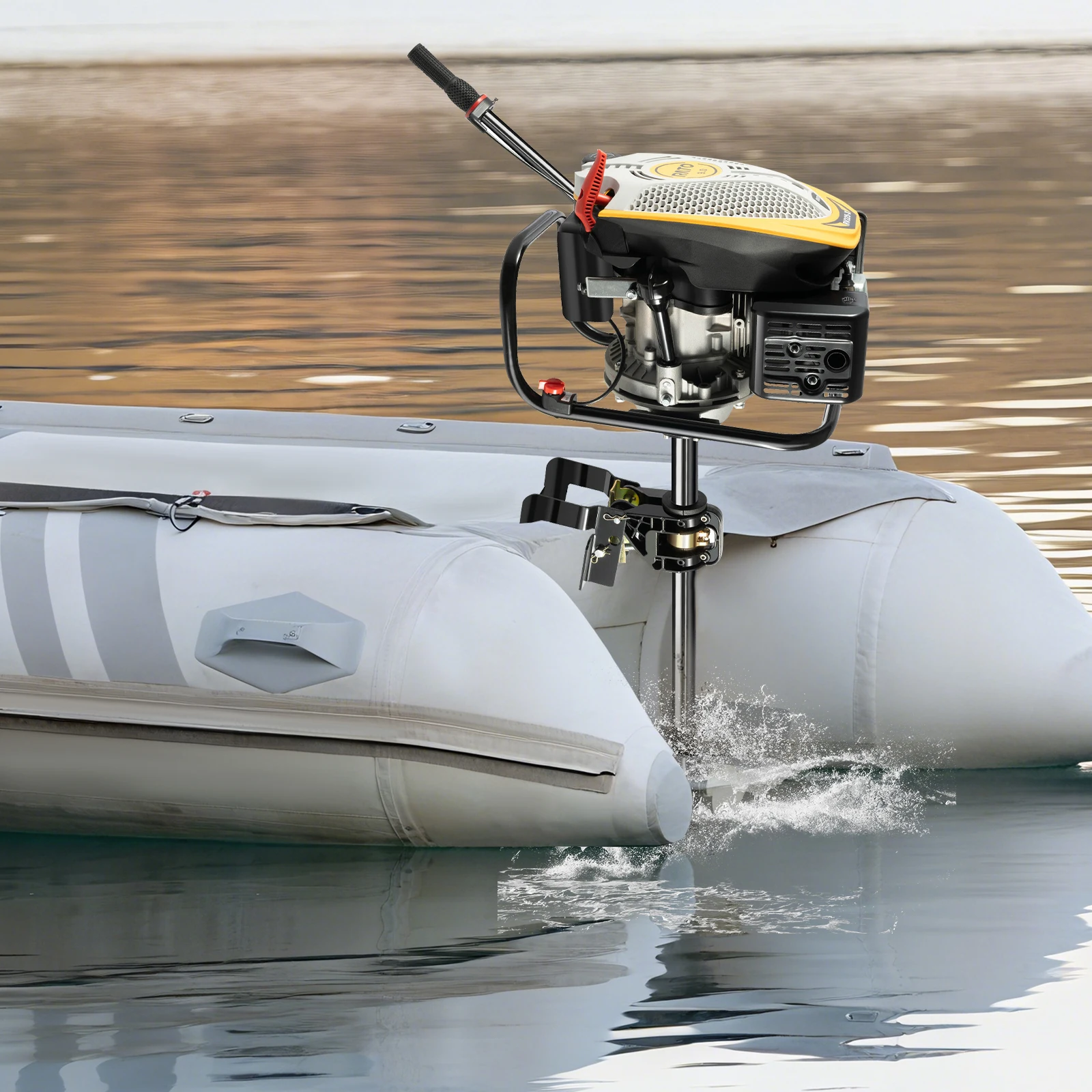

This outboard engine is suitable for inflatable boats, iron boats, plastic boats, fiberglass boats, wooden boats, etc. with a stern plate height of 11.81-19.69 inches. It is widely used in fields such as fisheries, aquaculture, and outdoor exploration.

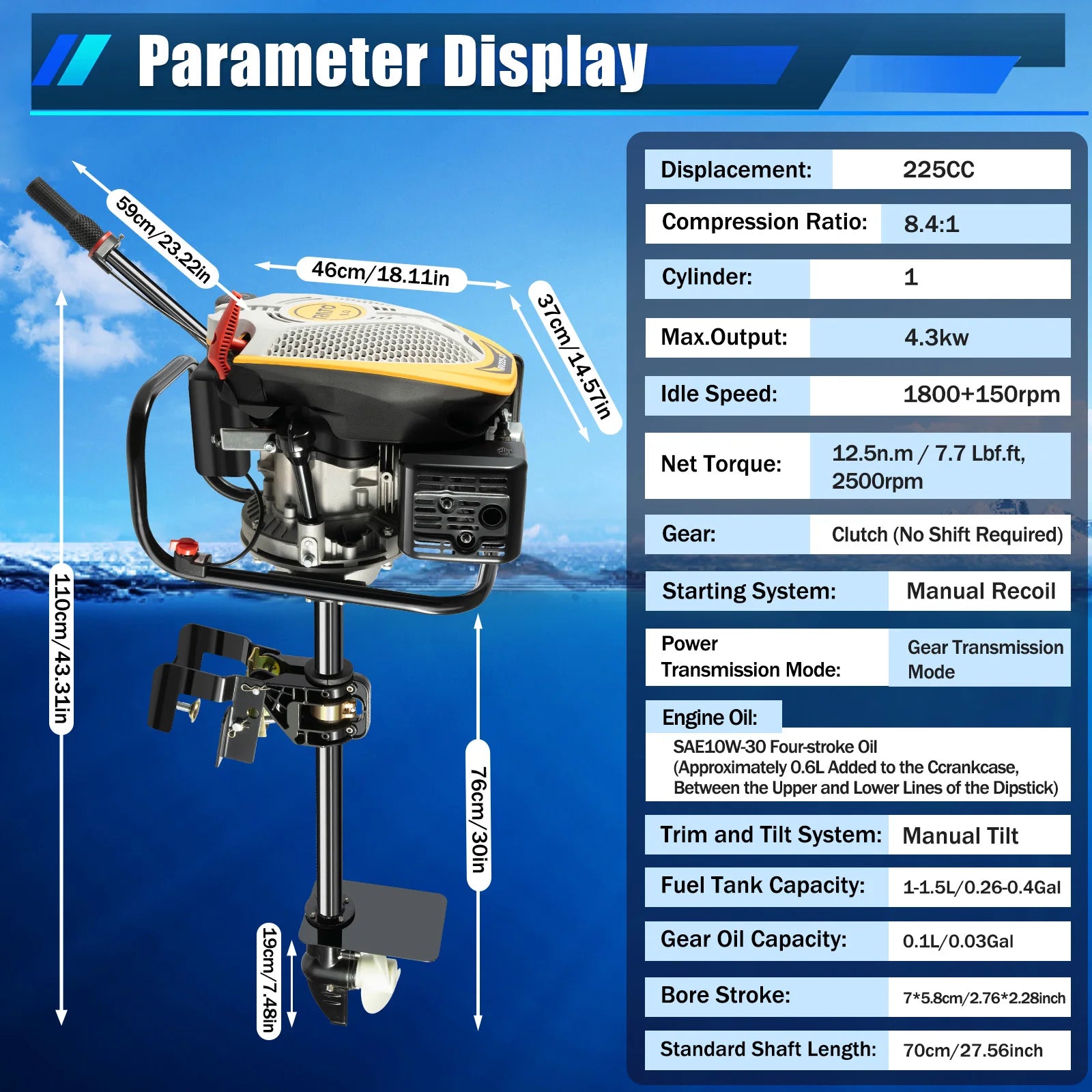

Specification

Color: Black

Material: Aluminum Alloy, Nylon, Rubber

Process: Spray Molding

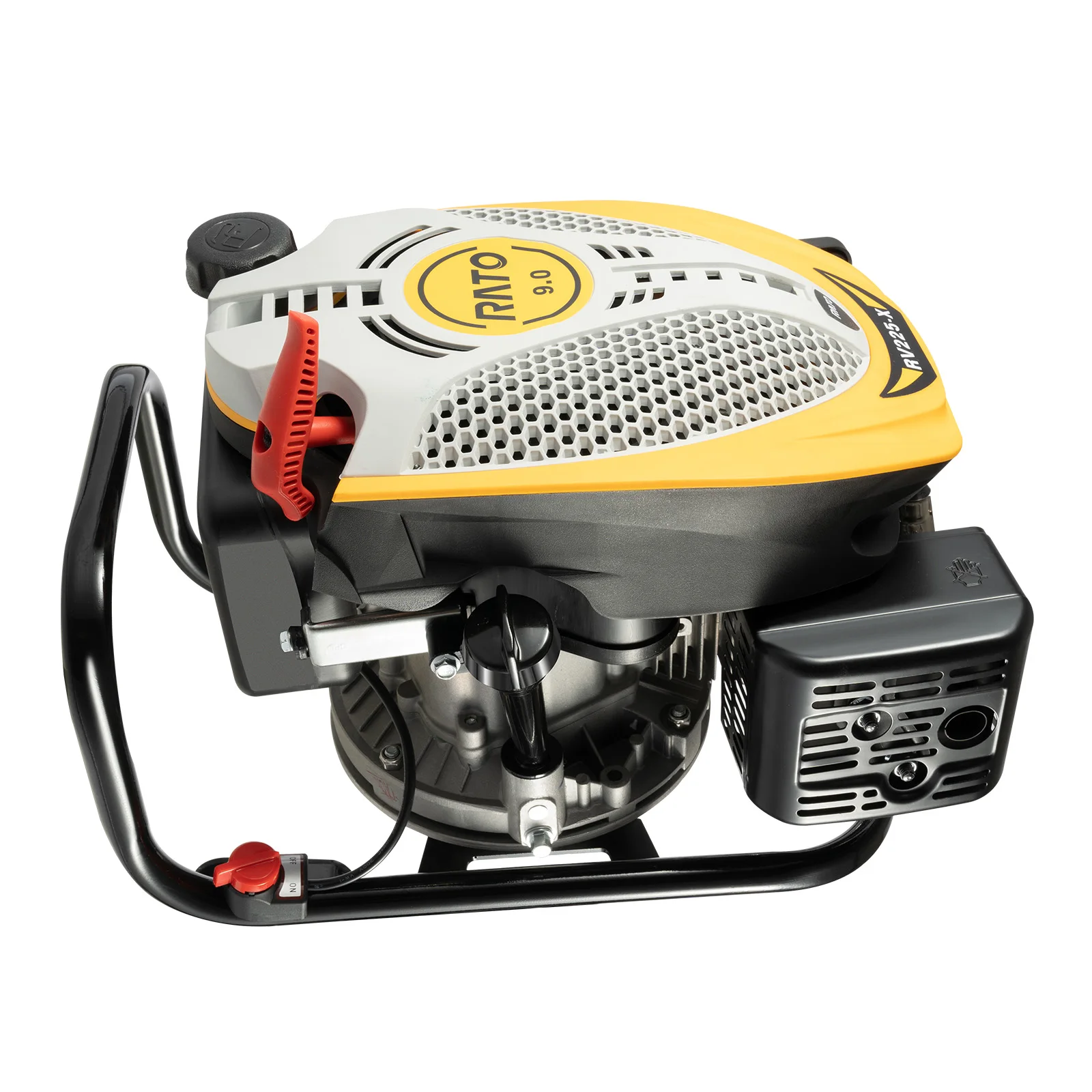

Engine Type: 4-stroke, OHV

Displacement: 225CC

Compression Ratio: 8.4:1

Cylinder: 1

Max.Output: 4.3kw

Rotation: 3800r/min

Max. Speed: 15km/h/9.32miles/h

Idle Speed:  1800+150rpm

Net Torque: 12.5n.m / 7.7 Lbf.ft, 2500rpm

Gear: Clutch (No Shift Required)

Ignition System: TCI

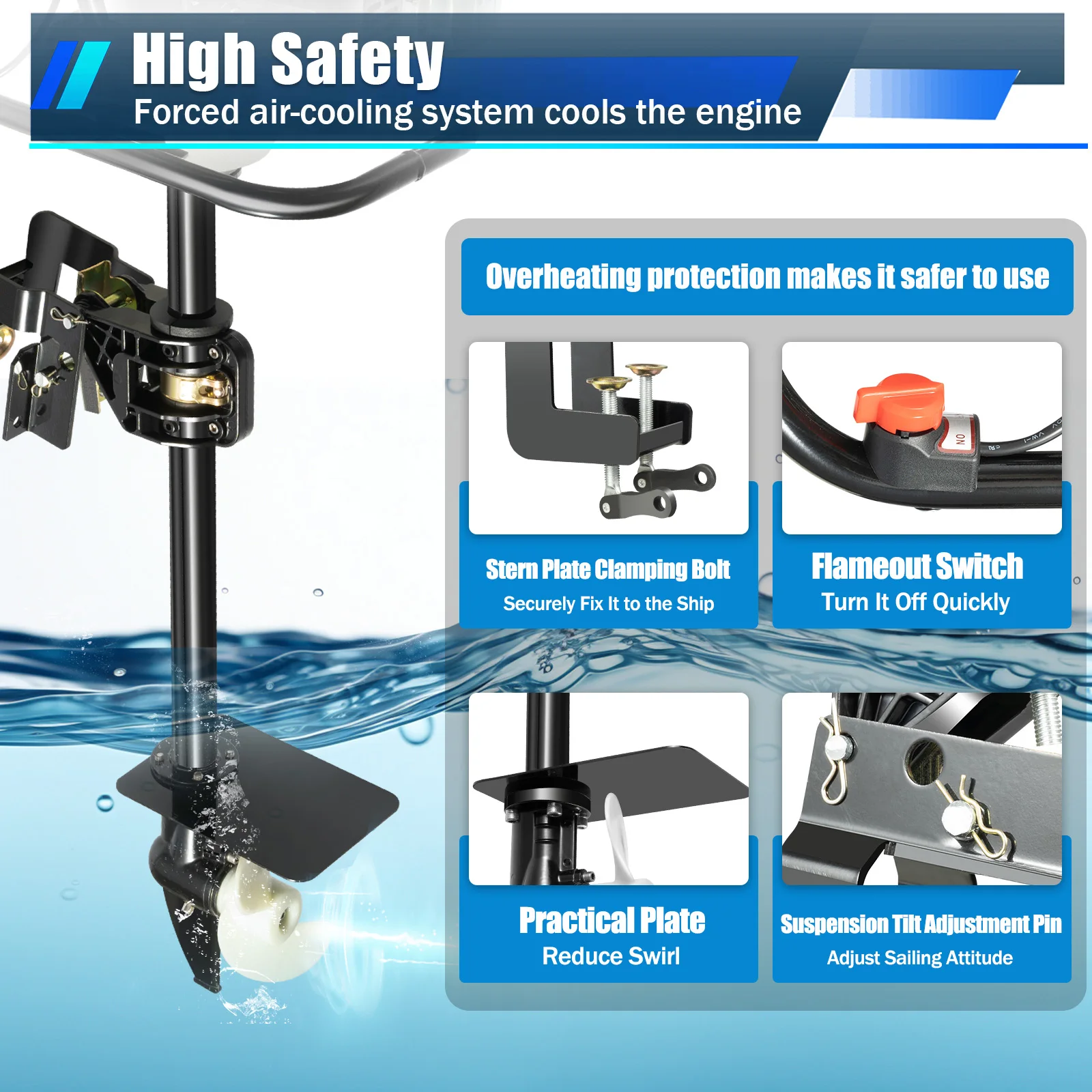

Cooling System: Forced Air-cooling

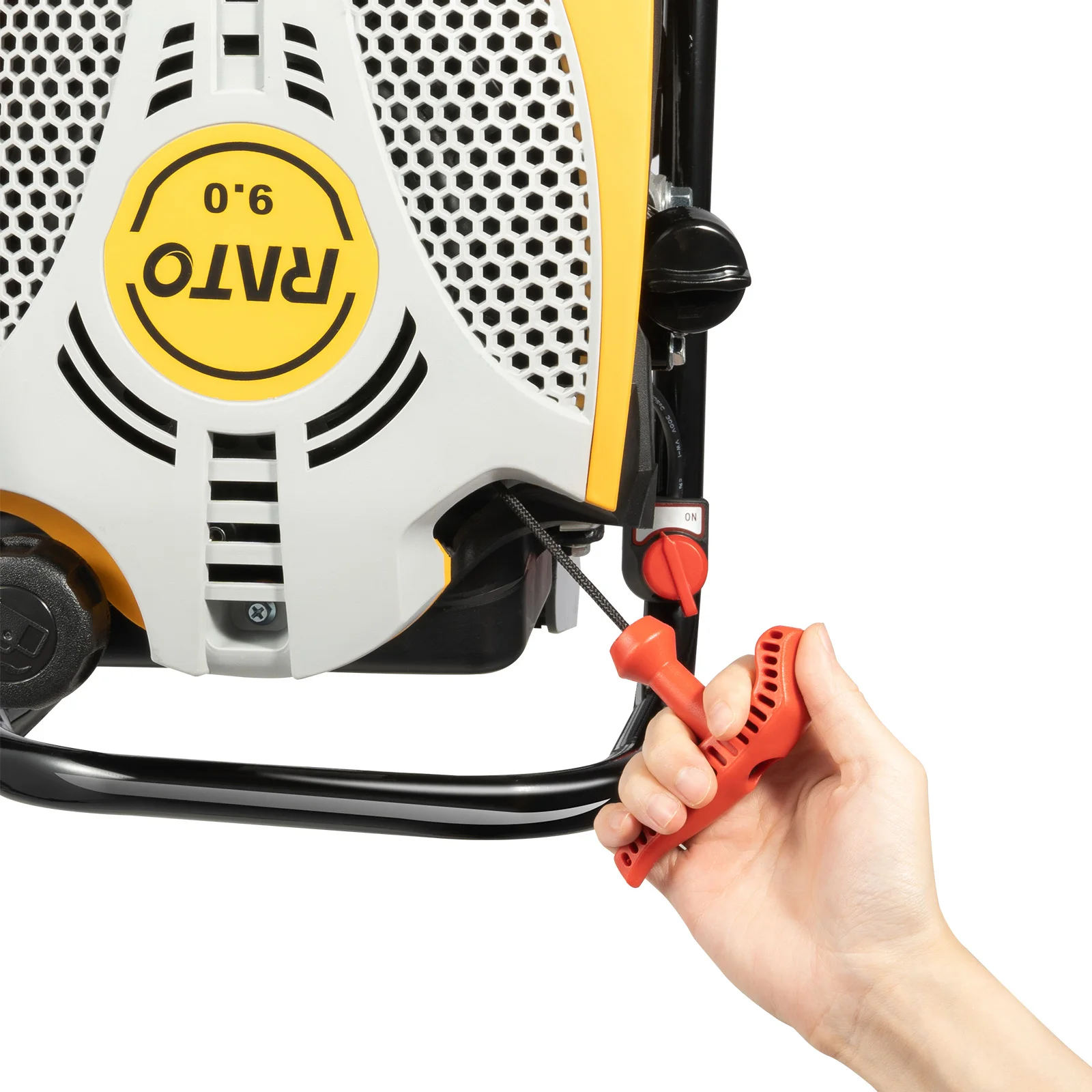

Starting System: Manual Recoil

Power Transmission Mode: Gear Transmission Mode

Recommended Fuel:  Above 92# Unleaded Gasoline

Engine Oil: SAE10W-30 Four-stroke Oil (Approximately 0.6L Added to the Ccrankcase, Between the Upper and Lower Lines of the Dipstick)

Trim and Tilt System: Manual Tilt

Fuel Consumption: 1.5L/0.4Gal/H

Fuel Tank Capacity: 1-1.5L/0.26-0.4Gal

Gear Oil Capacity: 0.1L/0.03Gal

Bore Stroke: 7*5.8cm/2.76*2.28inch

Standard Shaft Length: 70cm/27.56inch

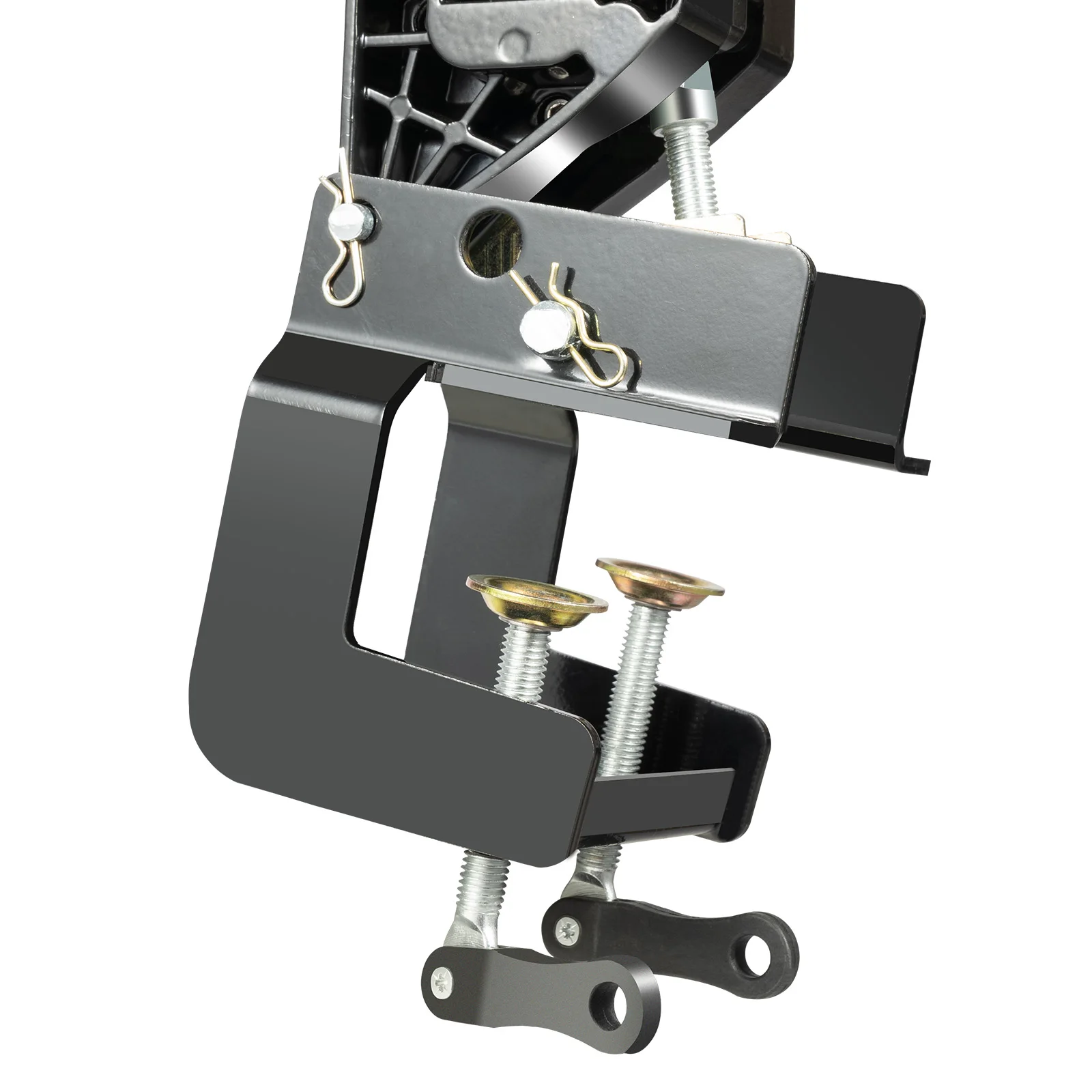

Adaptive Transom Plate Height: 30-50cm/11.81-19.69inch

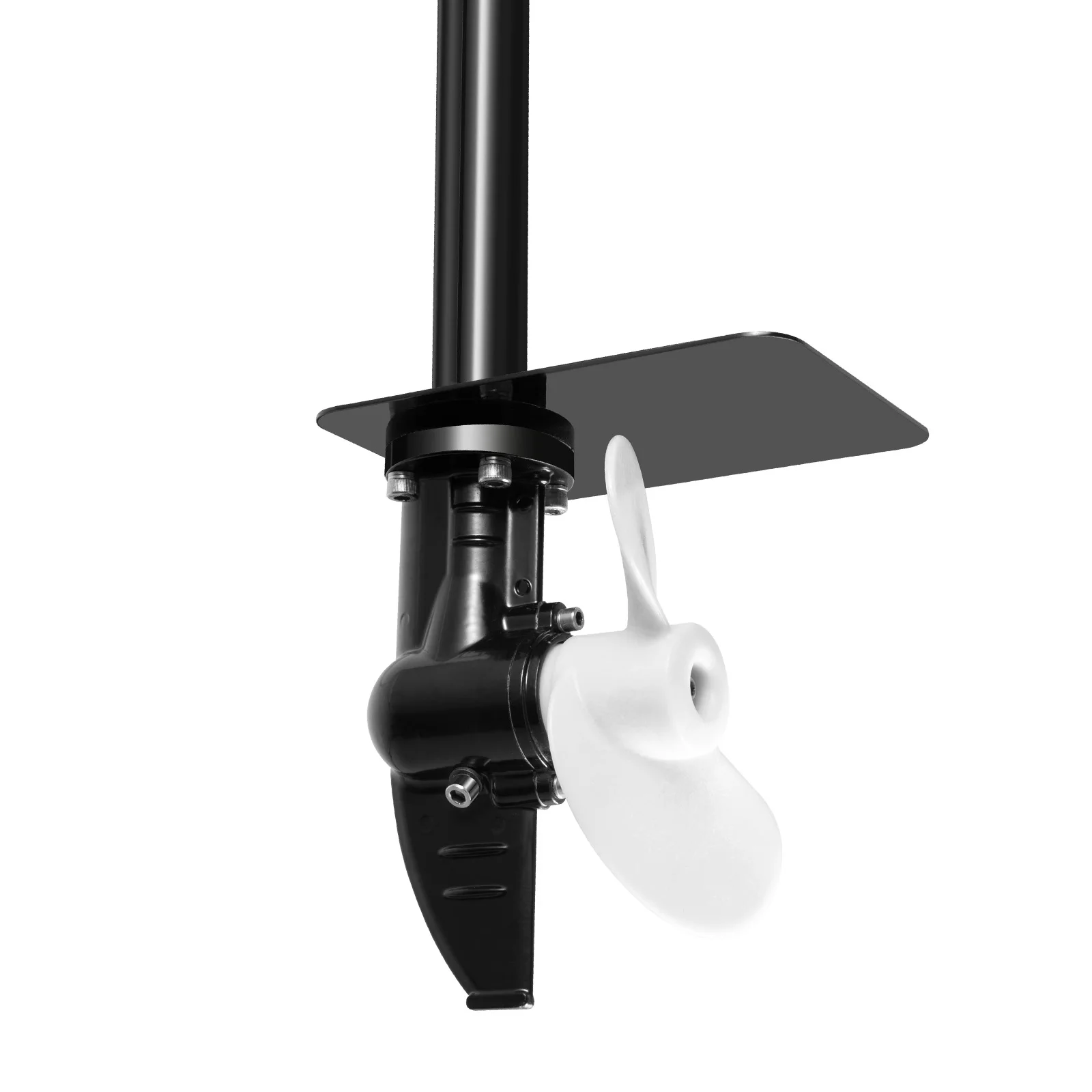

Propeller Diameter: 19cm/7.48inch

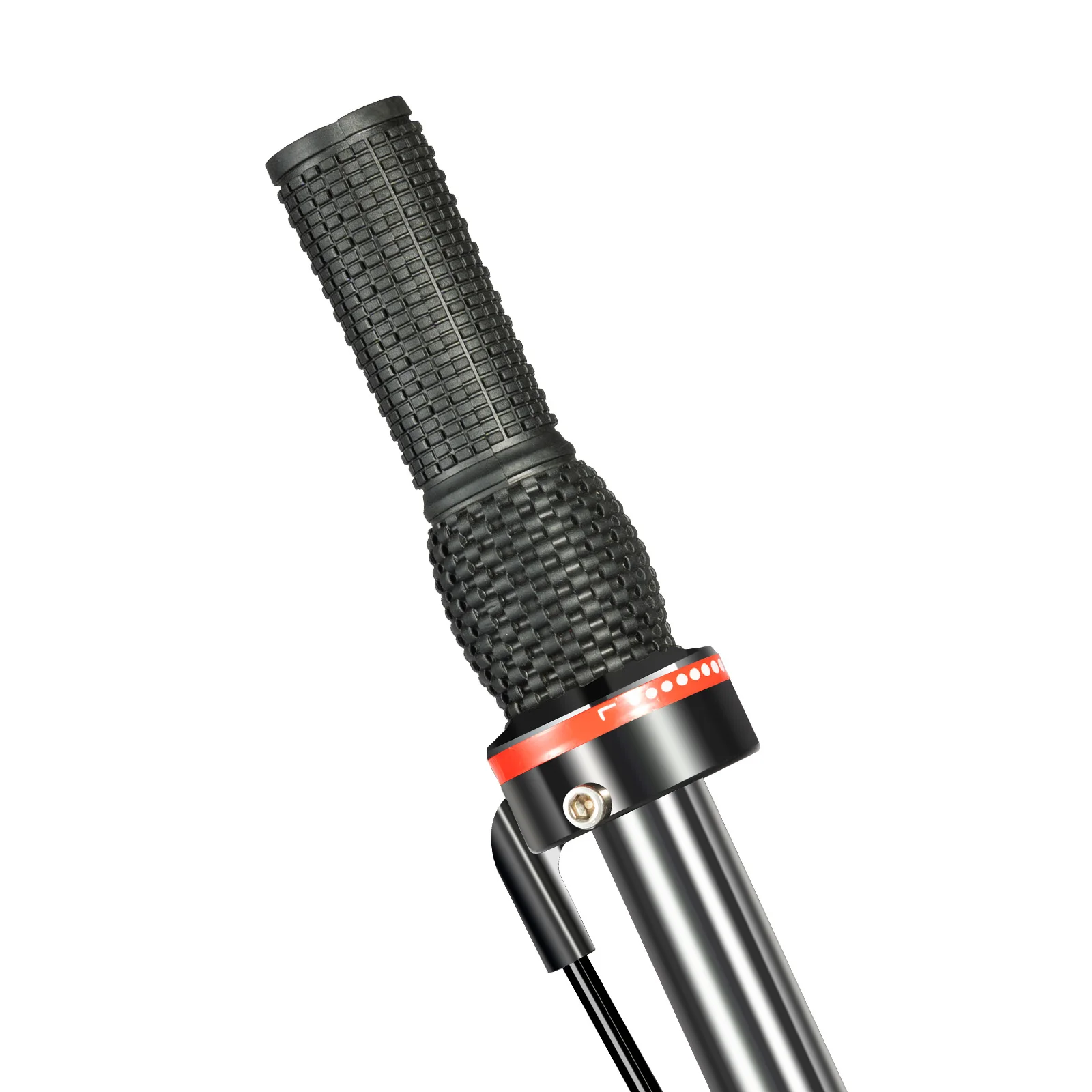

Joystick Length: 59cm/23.22inch

Oil Filling Pipe Length: 14cm/5.51inch

Product Lower Part Length: 76cm/30inch

ProductTotal Length: 110cm/43.31inch

Gross Weight: 32.3kg/71.21lbs

Net Weight: 25.6kg/56.44lbs

Engine Size: 46*37*30cm/18.11*14.57*11.81inch

Package Size: 120.5*52.5*40.5cm/47.44*20.67*15.94inch

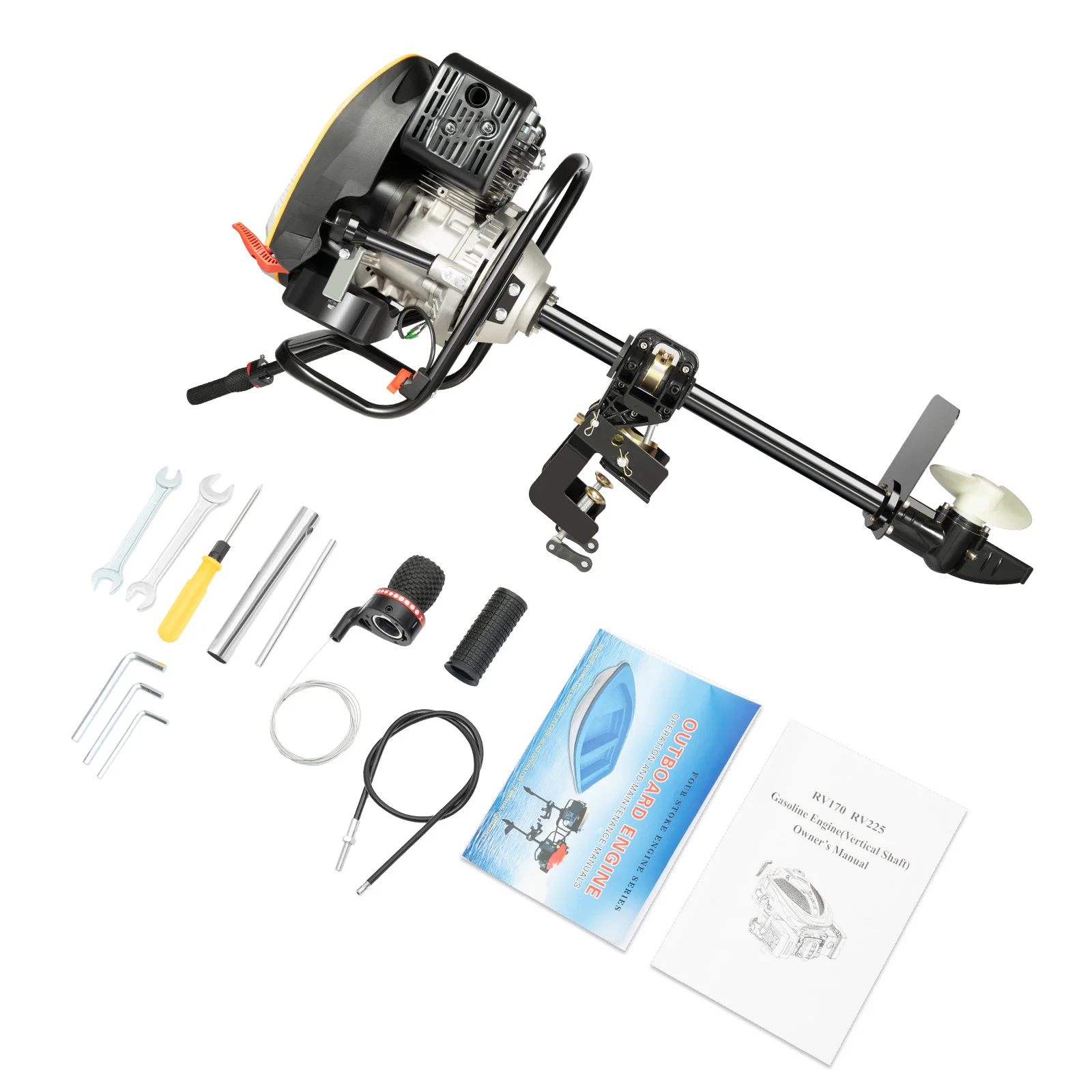

Package Included

1* Outboard Engine

2* English Manuals

All Accessories for Installation

Notes

1. Please carefully read the manual and strictly follow the precautions to have a better experience.

2. Please measure the height of your boat before purchasing to ensure suitability for this product.

3. Please ask a professional master to fix it on the boat, then firstly add 4-stroke oil according to the scale between the upper and lower lines of the scale (please do not start the motor without engine oil). The fuel tank should be filled with pure gasoline of above No.92, and then start the motor.

4. Please do not drive too fast during the running-in period. After the running-in period, the oil in the crankcase needs to be replaced, and the second replacement time is about 30 hours. Replace it every 50 hours thereafter.

5. Please note that the propeller gearbox requires a gear oil change every 50 hours.

6. After cruising in seawater or turbid water, please clean the rod and gearbox with fresh water. It should be stored in a dry and ventilated place.

7. If not in use for a long time, please drain the gasoline tank and the carburetor.

8. Please note that the exact speed of travel depends on the shape of your boat, weight, water, wind, and other factors.

9. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
