Kayak Fish Finder Installation Made Simple
A fish finder can turn a long paddle into a more informed day on the water. It helps you read depth changes, locate structure, watch water temperature, and spend less time guessing where fish may be holding. A good kayak fish finder installation is not about adding the biggest screen possible. It is about building a setup that stays dry, balanced, easy to use, and out of the way when it is time to cast.
Whether you are outfitting a first fishing kayak or cleaning up an older rig, begin with the way you actually fish. A simple unit with traditional sonar may be plenty for ponds and small lakes. Anglers covering bigger water or hunting ledges, brush, and transitions may appreciate GPS mapping, down imaging, or side imaging. The right choice is the one you will use comfortably from the seat.
Choose the System Before You Drill
Before mounting anything, lay out every part on the kayak: display, mount, transducer, battery, wiring, connectors, and any protective case. Sit in the seat with your paddle and rod in hand. This quick dry run reveals problems that look minor on a garage floor but become frustrating on the water, such as a screen blocking your casting side or a cable sitting where your feet need to move.
Screen size is the first trade-off. A larger display is easier to read in bright sunlight and makes split-screen mapping more useful. It also costs more, takes more deck space, and can catch a paddle, rod, or rain jacket. For many recreational anglers, a compact 4- to 7-inch unit offers a smart balance of visibility and space.
Check the finder’s voltage requirements and power draw before choosing a battery. Most kayak units run on a 12-volt battery, but capacity matters. A small battery can save weight for a short morning trip, while a larger capacity battery makes more sense for all-day fishing, frequent GPS use, and brighter screen settings.
Kayak Fish Finder Installation: Plan Three Locations
A tidy layout comes down to three decisions: where the display sits, where the transducer reads the water, and where the battery rides. Keep each component accessible without making the cockpit feel crowded.

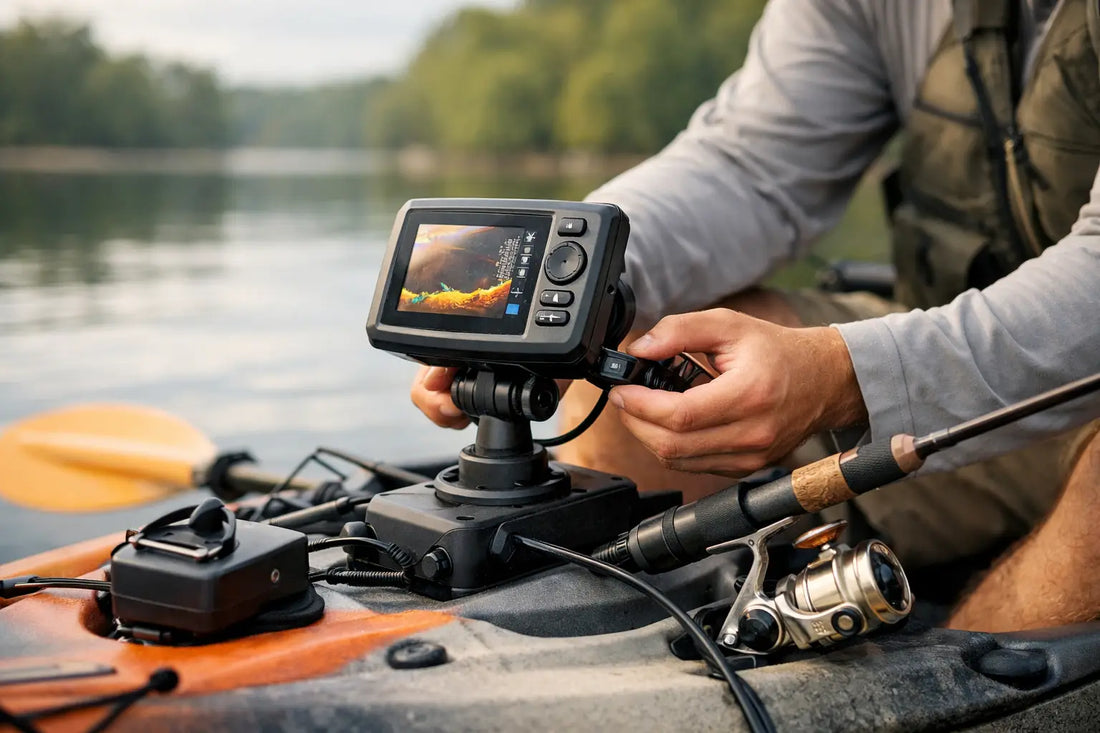

Mount the display within easy reach
The display should be visible without forcing you to twist or lean forward. Many anglers place it just ahead of the seat, either on a gear track mount or a flat section of deck. Track-mounted setups are a popular choice because they can be repositioned or removed for transport without adding new holes to the hull.
If your kayak has no gear tracks, use the manufacturer-approved mounting surface and hardware. Avoid thin, flexible plastic areas that can wobble under the display’s weight. Leave enough clearance to rotate the screen, operate the buttons, and remove the unit when loading the kayak.
Think about sun glare, too. A screen angled directly upward can be hard to read at midday. A small adjustment toward your seated eye line often makes a bigger difference than turning brightness to maximum.
Select a transducer method that matches your kayak
The transducer needs clean water flow to produce reliable readings. A built-in transducer recess or compatible scupper mount is often the neatest option because it protects the transducer and keeps the deck clear. Confirm that the mount is designed for your kayak and transducer shape before buying.
An over-the-side arm mount is flexible and easy to remove. It works especially well if you use one fish finder across multiple kayaks, but it can create drag and may need to be lifted in shallow water, during launches, or around vegetation.
Some anglers shoot a transducer through the hull from inside the kayak. This can work with certain solid-hull kayaks and standard sonar, but it may reduce signal quality and usually prevents accurate water-temperature readings. It is generally not the right method for side imaging, and it should not be used on foam-filled, double-wall, or heavily textured hull sections. When in doubt, follow the fish finder and kayak manufacturer guidance rather than experimenting with adhesive in a critical area.
Keep the battery low, dry, and secure
A battery placed low and near the center of the kayak helps preserve balance. A center hatch is ideal when it stays dry and leaves room for the battery case. If the battery must sit behind the seat, secure it so it cannot slide during a turn, launch, or rough ride back to shore.
Use a water-resistant battery box or dry bag designed to protect electronics. It should still be easy to open for charging and inspection. Do not leave loose terminals exposed where a metal tool, wet gear, or spare tackle can bridge the connection.
Install It in a Clean, Practical Order
Once the layout is settled, install the system in an order that limits rework. Take your time with cable routing. The goal is a dependable setup that looks intentional, not a bundle of wires you have to troubleshoot at the launch ramp.
1. Mount the display base first. Mark the location, check the underside for clearance, then attach the mount with the correct hardware. Use marine-grade sealant on drilled holes where appropriate to help prevent water intrusion.
2. Fit the transducer mount. Make sure it is secure, level according to the manufacturer’s instructions, and protected from direct impact. Cycle any retractable mount up and down before heading out.
3. Route cables before permanently securing them. Run the power and transducer cables along existing channels, gear tracks, or interior routing paths when available. Keep them away from pedal drives, rudder controls, sharp edges, and areas where you enter or exit the kayak.
4. Leave gentle service loops. A little extra cable near the display and transducer makes future adjustments easier. Avoid tight bends, pinched wires, and long loose loops that can snag gear.
5. Connect power with protection. Use the supplied power cable, correct polarity, and an inline fuse close to the battery’s positive terminal. The fuse rating should match the fish finder manufacturer’s recommendation. This small part helps protect the unit and wiring if a fault occurs.
6. Secure and label the final setup. Use quality cable ties, adhesive mounts rated for marine use, or cable clips where they will not interfere with the hull. Label battery leads if you use more than one accessory on the kayak.
Test Before the First Fishing Trip
Turn the unit on at home to confirm it powers up, the buttons work, and the GPS receives a signal if your model includes mapping. Then test sonar in water. A transducer cannot read correctly while sitting in the garage, and a quick shoreline test can catch a loose plug or poorly positioned mount before the day’s fishing begins.
On the water, compare the depth reading with a known shallow area. Watch for a stable bottom return as you paddle at normal speed. If readings drop out, inspect the transducer for turbulence, weeds, air bubbles, or a mount that is sitting at the wrong angle.
This is also a good time to set up pages you will actually use. A simple sonar-and-map split screen is often more useful than a crowded display full of data fields. Save brightness and color settings that remain readable with polarized sunglasses.
Common Mistakes Worth Avoiding
The most common mistake is mounting the screen where it looks good but interferes with fishing. Leave room for casting, landing a fish, opening a hatch, and getting in or out of the kayak. A display that hits your knees or catches your paddle will not stay enjoyable for long.
Another is treating cables as an afterthought. Exposed wiring can snag hooks, collect water, and wear through over time. Route and secure it carefully from the start. Also avoid skipping the fuse, even for a small setup. A protected electrical connection is worth the few extra minutes.
Finally, do not overload a lightweight kayak with a large battery, oversized display, multiple mounts, and extra accessories just because there is room to attach them. More equipment can be useful, but it can also make carrying, launching, and storing your kayak less enjoyable. Start with the features that solve a real need, then add on after a few trips.
A clean fish finder setup gives you more confidence to explore unfamiliar water without turning your kayak into a complicated project. Build around your fishing style, protect the essentials, and keep the deck open for the reason you launched in the first place: a better day chasing fish.
